I would to control the switch only remotely, without any manual switch. How to wire it?
1
Alexandre Levert

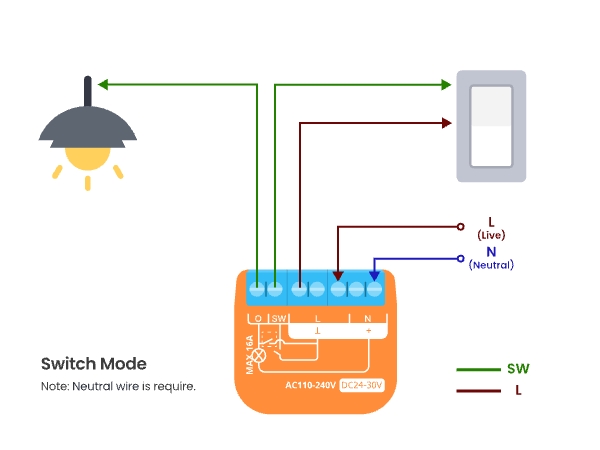

You would need to have a load wire and a neutral at the light switch (4 wires not 2).
You connect load to l (incoming power)
You connect both neutral with a pigtail on the N. The wire that goes to the light, you connect it to O. Then you connect the switch to sw and L
Comments
2 comments
I would to control the switch only remotely, without any manual switch. How to wire it?
You would need to have a load wire and a neutral at the light switch (4 wires not 2).
You connect load to l (incoming power)
You connect both neutral with a pigtail on the N. The wire that goes to the light, you connect it to O. Then you connect the switch to sw and L
