How to Install the Magnet of SwitchBot Lock Pro

• Related Products: SwitchBot Lock Pro

1. Unlike SwitchBot Lock, the magnetic sensing area of the Lock Pro is located at the bottom left of the dial knob.

2. You can place the magnet on either side of the Lock Pro main unit dial knob. Also, make sure that the horizontal distance from the Lock Pro main body is between 20mm and 40mm.

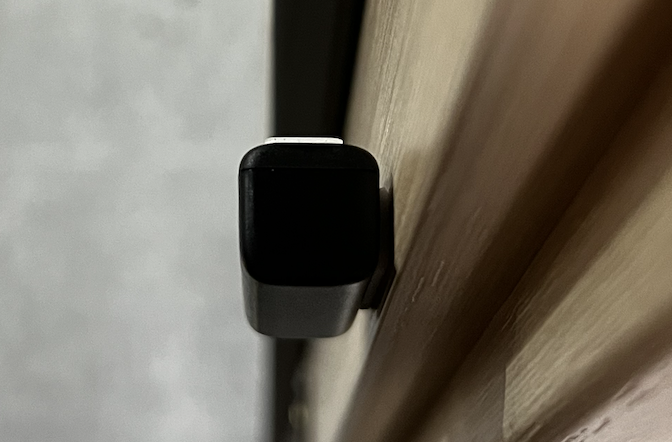

3. Make sure the magnet orientation is correct. The detectable parts of the magnet are the sides.

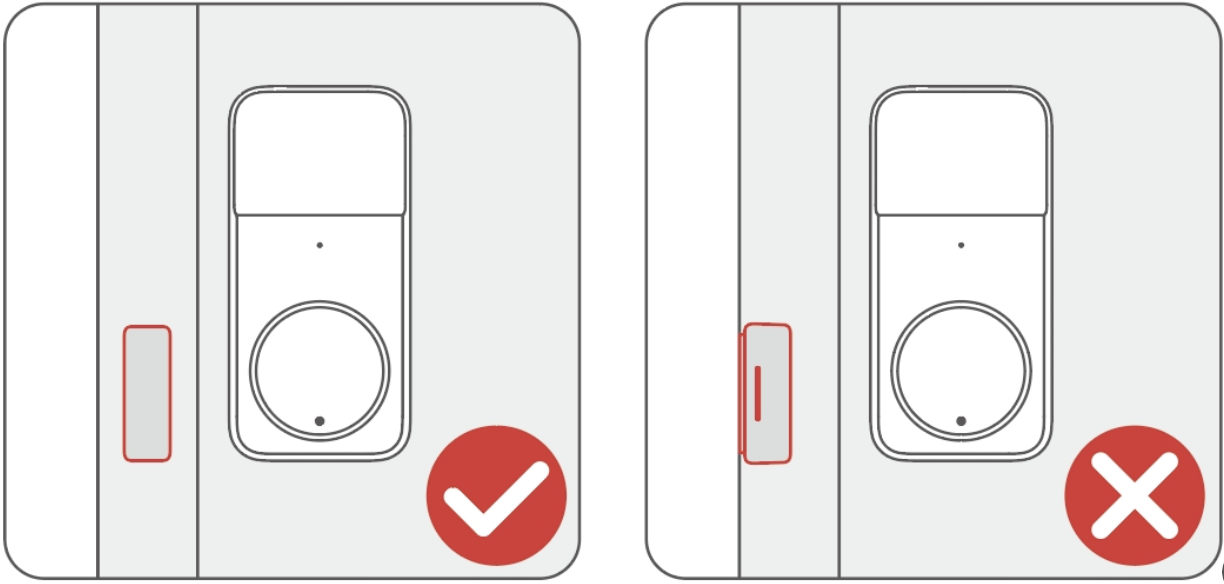

4. You may need to adjust the magnet orientation according to the figure below, based on your door frame.
