How to Set up SwitchBot Hub 3 Screen

• Related Product: SwitchBot Hub 3
• SwitchBot App Version：9.10 or newer

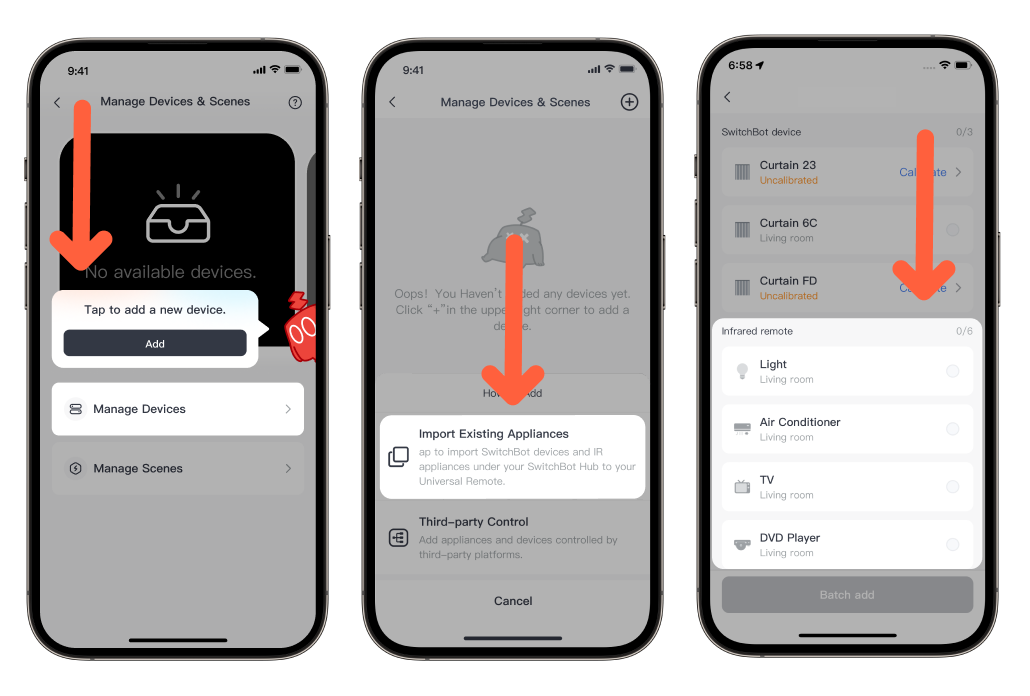

1. Add Infrared Remotes & Bluetooth Devices

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Manage Devices".
• Tap "+"  in the upper right corner.
• Tap "Import Existing Appliances".
• Select SwitchBot devicesand infrared remote controls.
• Tap "Batch add".

After successful synchronization, you can view and control the devices on the Hub3 screen.

2. Add Bluetooth Remotes and Set up Matter

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Manage Devices".
• Tap "+"  in the upper right corner.
• Tap "Third-party Control".
• Follow the app's guidance to pair the Bluetooth remote controls and set up Matter

After successful addition, you can view and control the devices on the Hub3 screen.

3. Add Scenes

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Manage Scenes".
• Tap "+" icon next to the target scenes.

After successful synchronization, you can view and control the scenes on the Hub3 screen.

4.  Weather Forecast Setting

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Displayed Info".
• Enable "Weather Data".

SwitchBot App -> Profile -> Manage Home -> Home where your Hub 3 is located -> Set up home location

Once completed, the Hub 3 will show the 24-hour weather overview for the day. The forecast updates hourly and includes weather conditions such as snow, rainy, overcast, cloudy, clear, light snow, and drizzle.

5. Temperature and Humidity Source Setting

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Displayed Info".
• Tap "Environmental Data Source".
• Choose a device and tap "confirm".

After displaying data from other thermohygrometers on the hub 3 screen, the data from the hub 3 itself can only be viewed on the SwitchBot App.

6. Lock Status Setting

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Displayed Info".
• Tap "Lock Status".
• Select the Lock and tap "confirm".

Once completed, the Hub 3 will show the status of your Lock on its screen.

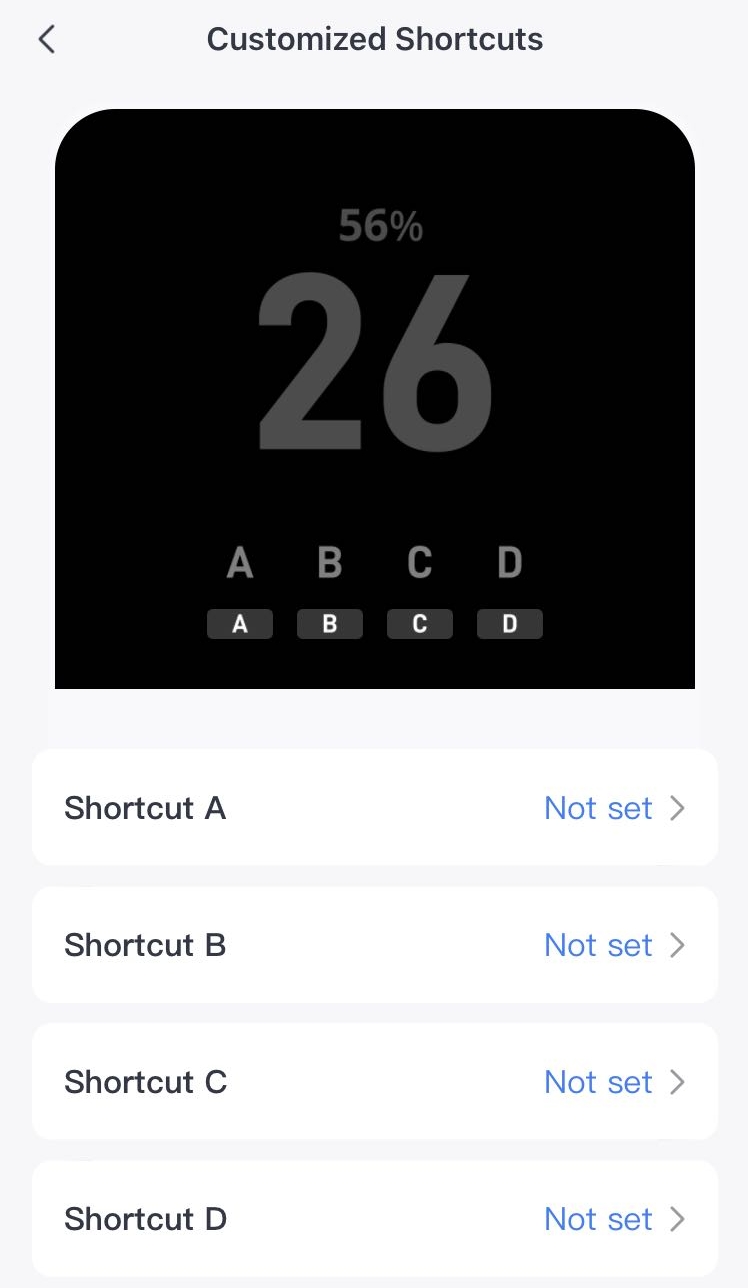

7. Customized Shortcuts (A, B, C, and D buttons) Setting

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Displayed Info".
• Tap "Customized Buttons".
• Assign the devices and scenes already added to Hub 3 to A, B, C, and D buttons.

Once completed, touch the Custom buttons on the Hub 3 unit and the devices already added will appear on the display.

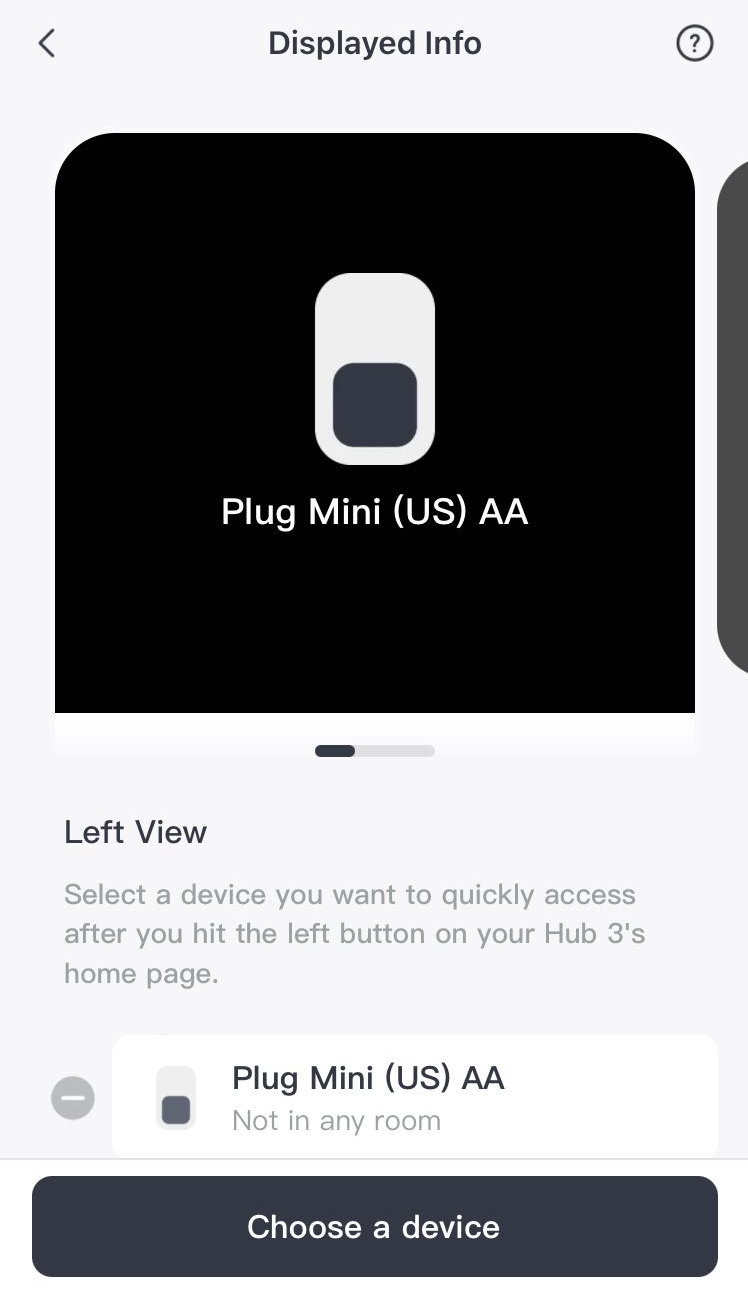

8. Left View and Right View Settings

• Launch SwitchBot app and log in.
• Tap your Hub 3.
• Tap "Manage Screen".
• Tap "Displayed Info".
• Tap "Customized Buttons".
• Tap "Left/Right Buttons".
• Tap "Choose a device".
• Select a device that has already been added to your Hub 3.
• Set the right view in the same order.

Press the left or right key on the Hub 3 main unit to view configured devices.
