Installation Precautions for SwitchBot Smart Video Doorbell

• Related Product: SwitchBot Smart Video Doorbell

Monitor:

Villas and Houses: 10 meters away from the entrance (steel) door without any obstruction. For example, installed in a bedroom doorway or living room.

Apartments: within 5 meters of the entrance (steel)  door with no obstruction. For example, near the entrance to the living room.

Notes:

• Do not place the monitor on a metal table.
• Install the monitor as close to the router as possible.

Doorbell:

1. It's recommended to position your device 1.2 m to 1.5 m (44 ft to 4.9 ft) off the ground. To get a better signal strength, please avoid installation on metal door or surface.

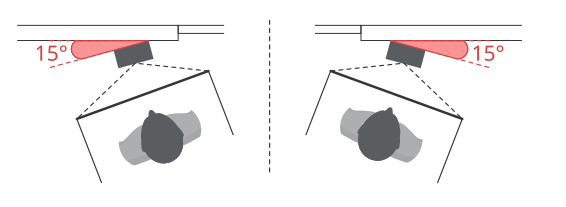

2. Use the provided wall mounting kit and corner kit to angle your device properly and avoid unwanted motion events.

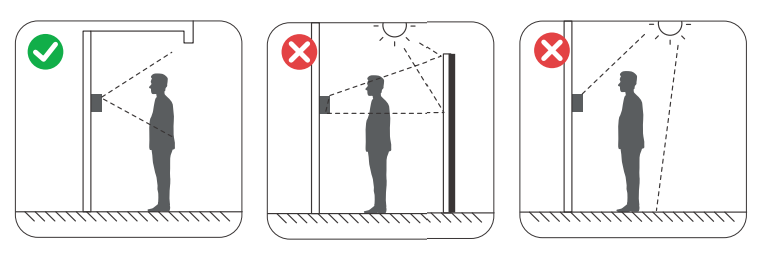

3. Ensure your Doorbell's camera is not directed at light-coloreed walls, and keep it away from direct sunlight.

4. Leave at least 6 cm (2.4 in.) of clearance on the right side of your Doorbell for easy clamping and removal.

5. To ensure a stable connectivity, keep an appropriate distance beetween your Doorbell, Monitor, SwitchBot Lock devices, and the router.
