Instructions for Using Magnets With the SwitchBot Curtain 3 （Rod）

Last Updated：2023 Aug 25

• Related Products: SwitchBot Curtain 3

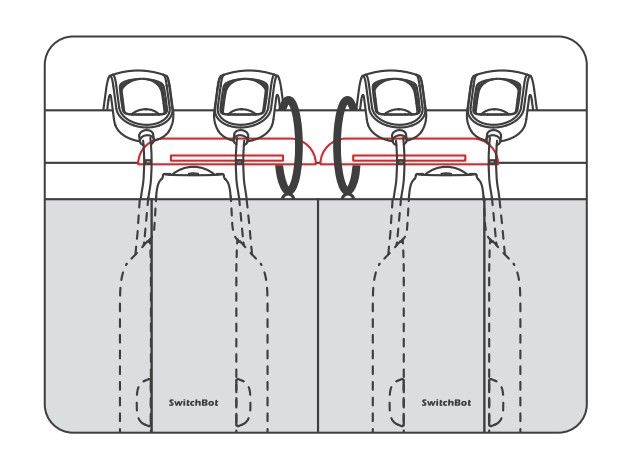

Ring Top Curtains

1． Wipe the rail thoroughly before attaching the magnet.

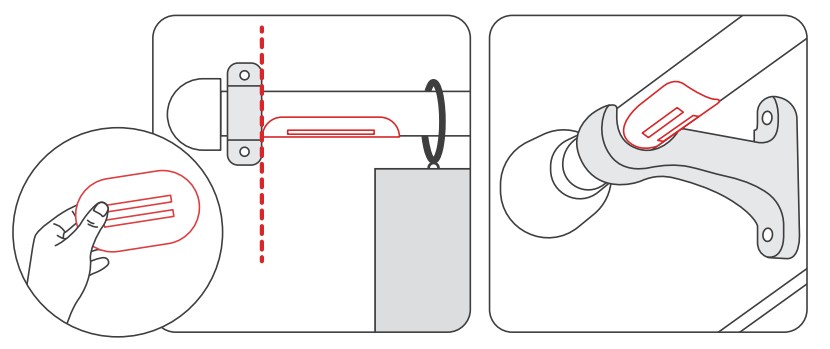

2． If a rod bracket is holding the rod at the closed position, remove the magnet attachment from the liner. Stick it to the bottom of the rod along the bracket, with the magnet piece inside parallel to the rod.

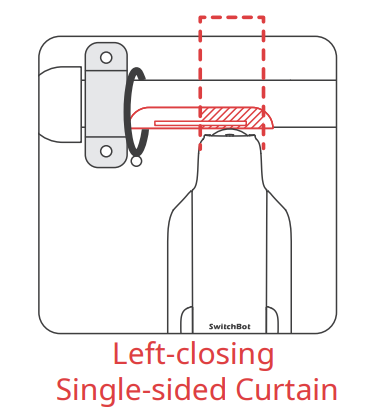

3． Pull your SwitchBot Curtain 3, make it roll onto the magnet attachment, and stop within the area as shown in the picture.

4． Hide your SwitchBot Curtain 3 behind your fabric curtain to finish.

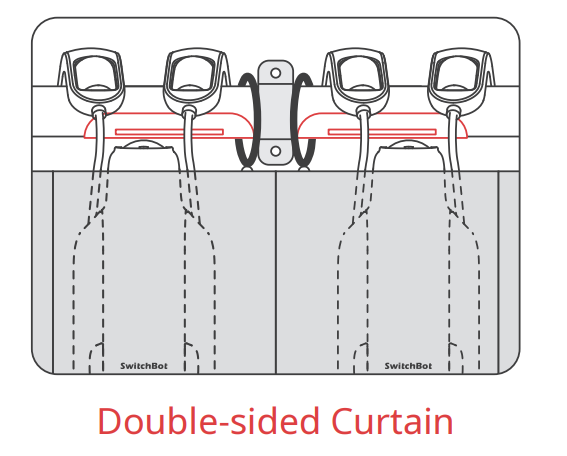

Double-sided curtains without a bracket in the middle

1． Wipe the rail thoroughly before attaching the magnet.

2． Ensure that you fully close the curtains in your home. Position the two magnets on the left and right sides of the bracket, located in the center of the rail, and secure them to the underside of the pole.

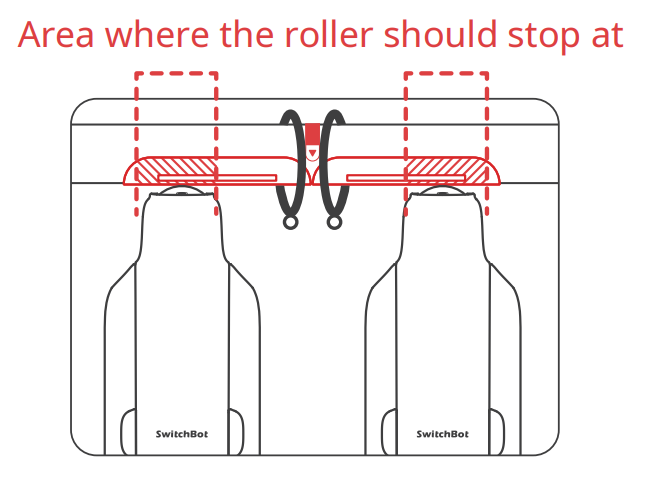

3． Adjust SwitchBot Curtain 3 until the rubber roller halts at the area marked by the dotted line on the magnets.

4． Hide your SwitchBot Curtain 3 behind your fabric curtains to finish.

Double-sliding curtain rod without brackets in the fully closed position

1． Wipe the rail thoroughly before attaching the magnet.

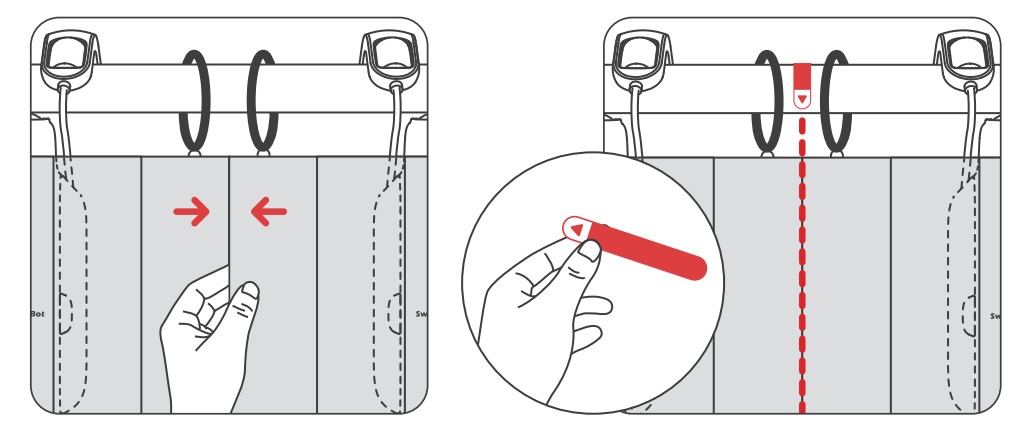

2． Ensure that the curtains in your home are fully closed. Indicate the closing position using the provided red sticker.

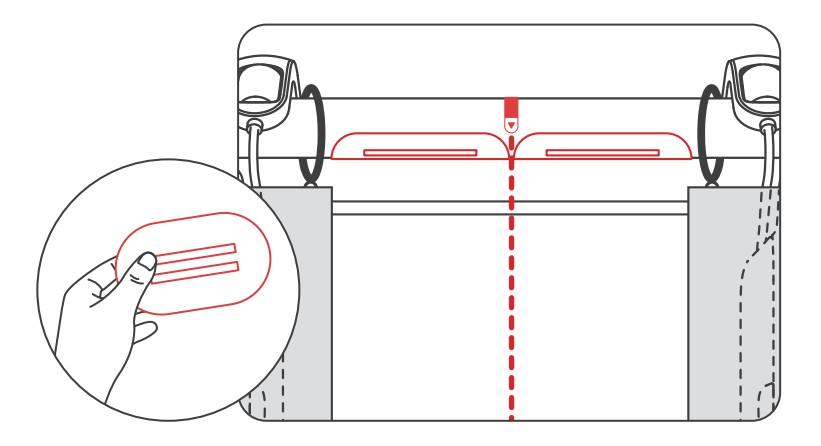

3． Open the curtains in your home. Peel off the tape liners of your magnet attachments, carefully align them with the position indicated by the arrow on the sticker, and attach it to the pole by wrapping it around from beneath. Make sure that the two magnets adhere to each other as illustrated.

4． Adjust SwitchBot Curtain 3 until the rubber roller halts at the dotted region on the magnet.

5． Remove the sticker.

6． Hide your SwitchBot Curtain 3 behind your fabric curtains to finish.
