Model |
Rail Type |
Hook Wheel |
Hook Wheel Attachment |
|
Taiwan Ti Rail |
Type B |
|
Must use on Hook Wheel |
|
|
Must use on Hook Wheel |
||
|
Japan TOSO Elite |
Type B |
Assembled Hook Wheel upon delivery |
Must use on Hook Wheel |
Before you install Curtain to the rail, please attach the Hook Wheel Attachment to the Hook Wheel.
Push the Hook Wheel Attachment all the way in. When they are firmly attached, you adjust them to a proper position to fit the rail's shape.
installing Curtain to Type B Rail
a. Remove the end cap of the curtain rail, using a screwdriver if necessary.

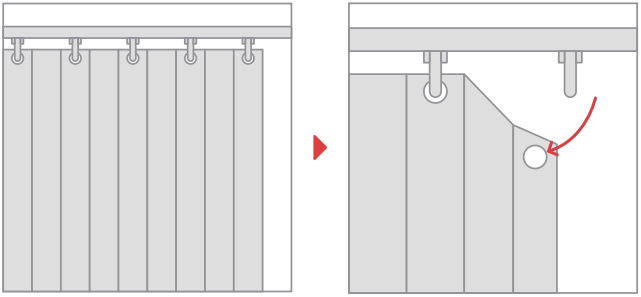

b. Close your curtain. Then detach the last curtain hook and remove the last curtain rail glider.

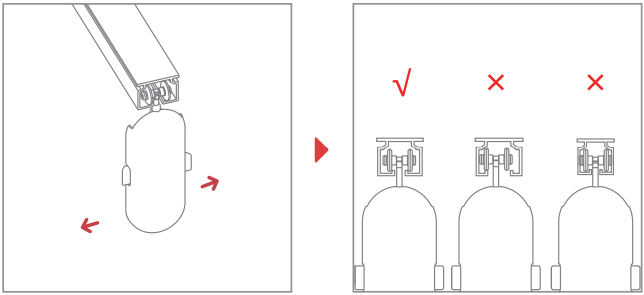

c. Insert the separate Hook into the curtain rail from the end. Pull the Hook towards one side of the rail and tilt it. If the Hook stays inside the rail, proceed to the next step. If you try all the parts still do not work as expected, please contact our customer support at support@switch-bot.com.

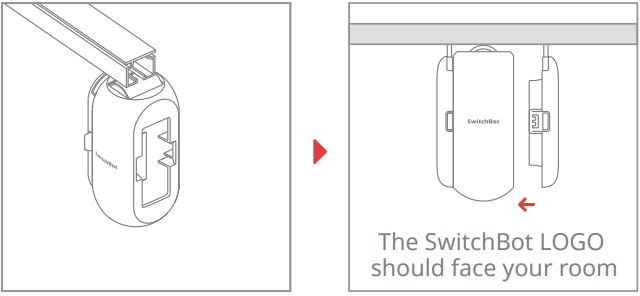

d. Insert both the Curtain's Main Body (with one Hook attached) and the separate Hook into the curtain rail from the end and attach the separate Hook back to the Main Body. The SwitchBot LOGO should face your room.

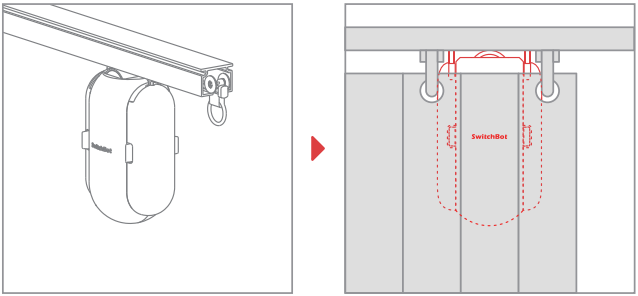

e. Put the curtain rail glider back to the rail. Then attach the curtain hook back to the glider.
f. Install the end cap back to the curtain rail, using a screwdriver if necessary.
